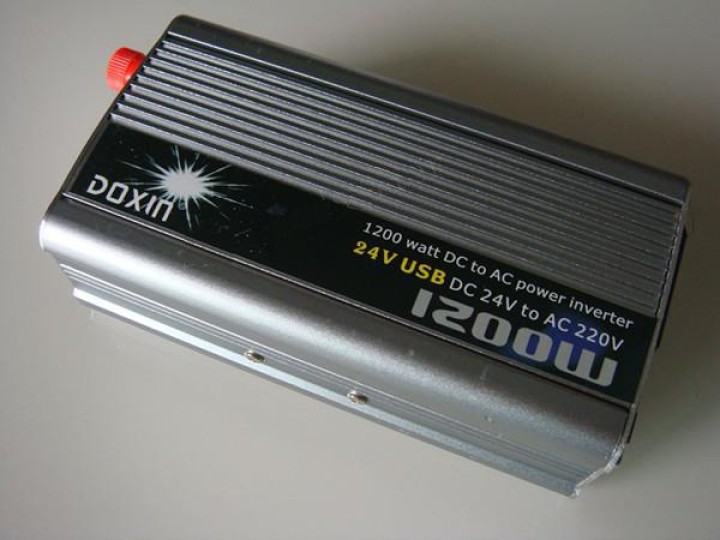

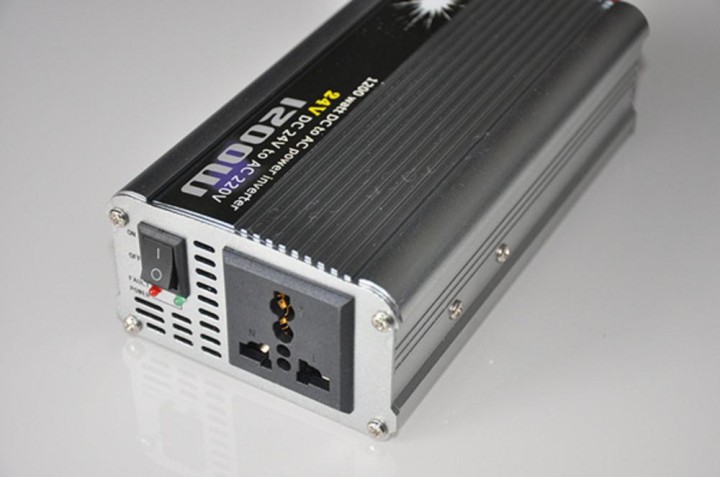

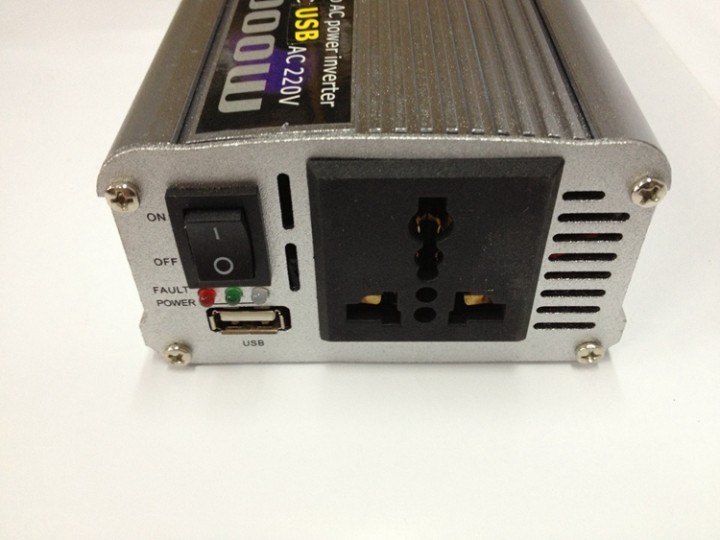

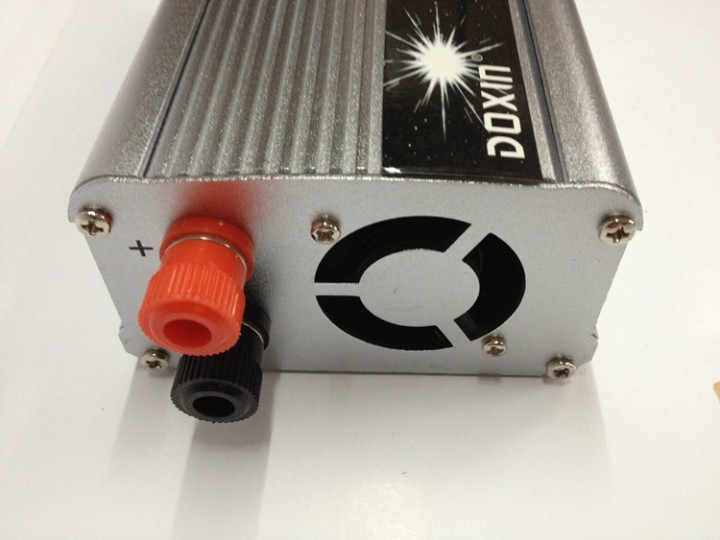

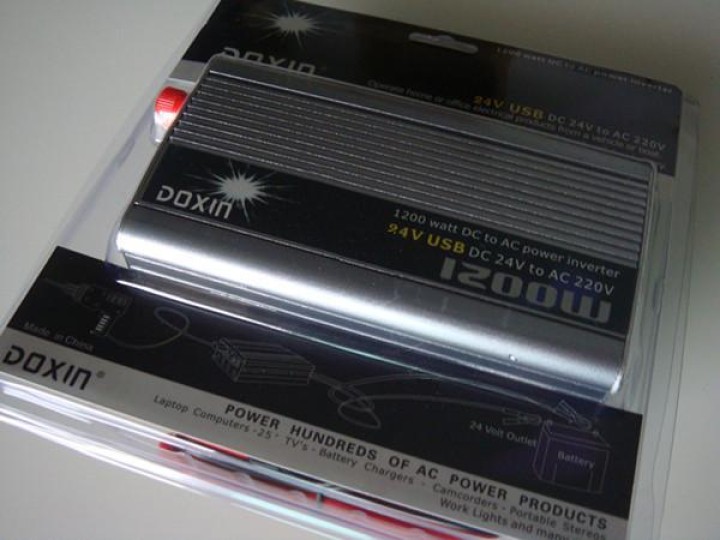

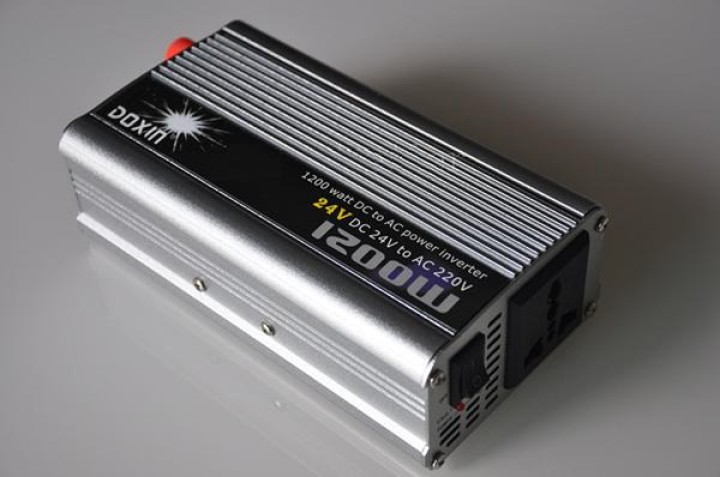

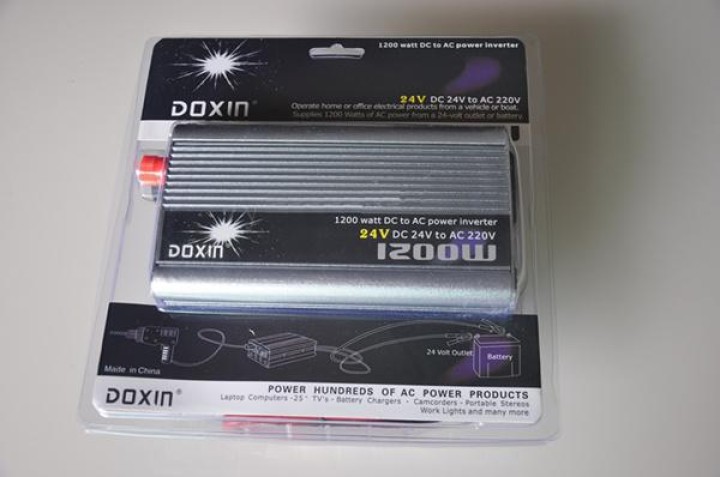

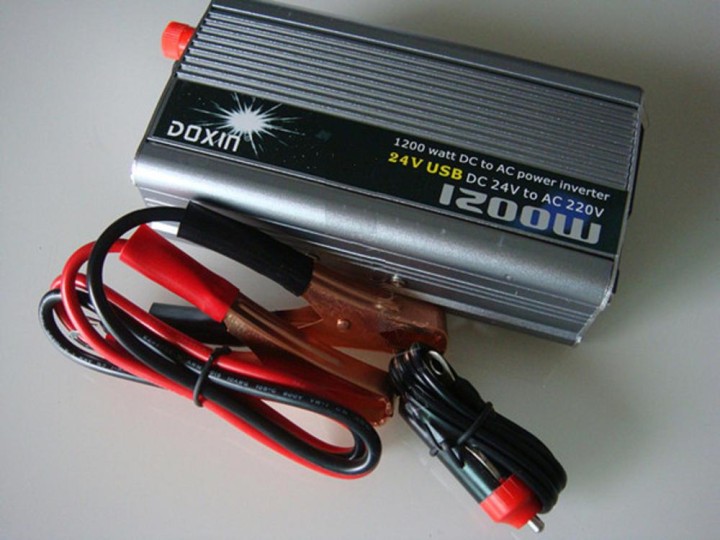

1200w 24v dc to ac 220v car auto power Inverter converter adapter with usb port modified sine wave transformer

Specification:
* Aluminum alloy casing
* Max continuous power :1200W
* Peak Load Power Rate: 2400W
* NO load current draw: <0.3A
* Input DC voltage Range: DC20V-30V
* Output Voltage Range: AC220+/-5%
* Output Frequency Range: 50+/- 3Hz
* Max Outer Temperature: < 65°C
* Max Power Efficiency: > 90%
* High Voltage Cut Off Level: 26.5V-27.5V
* Low Voltage Alarm Level: DC 20.4-21.V
* Low Voltage Cut Off Level: DC 19.7V-DC20.3V
* Overload and Short-circuit Protection yes
* Input Voltage: DC24V
* Output waveform: Modified sine wave
* Cooling: Natural
* Product Size: 191*95*55mm
* N.W:1.1KG
* G.W: 1.2KG

Protection Features
A. Overheat protection: Inverter internal temperature rose to 75 Degree, the red light. When the temperature drops, the inverter stops meditation alarm. When the internal temperature reached 85 Degree shut out in 3 seconds, red lights. When the temperature drops, the inverter automatically start in 0.1s

B. Overload: When the input voltage rating, output current 31-35A when the yellow light within 10-20 seconds, turn off the output, the protection response time ? 0.1s. When the load returned to normal range, the inverter will automatically started in 0.1s

C. Output short circuit protection: When input voltage rating, load short-circuit, the output off to protect the response time ? 10ms, yellow directions. When short-circuit rule, the inverter will automatically start in 0.1s

D. Input voltage protection: When input voltage down to 10.5± 0.3V DC, Inverter AC output is automatically turned off, this time the red LED lights, are not allowed to restart automatically.

E. Input over-voltage protection: When input voltage is above 15.0± 0.5V DC, Inverter AC output is automatically turned off, this time the red LED lights

F. Input voltage polarity protection: Input power connection counter (-36V, 1 min), the inverter should be self-protection so as not to be damaged.

Applications:
Mainly used in car, business travel, sailing trip, and some areas that power supply not normally. Lighting, Laptop, Games, Portable TV, Hand-held video camera, Digital Cameras, Small music center, Printer, Portable DVD, Battery Charger, Phones, Electric shaver, Portable CD / MD machines, PDA Pocket PC, Kara OK
MP3/MP4/MP5 etc.

Certificate: CE,EMC,LVD,RoHS
