REF : HET150
Features
dimmable transformers for halogen lighting
Specifications
power: 150VA
input: AC 230V / 50Hz
output: AC 11.5V (eff) 13A / 40kHz
Tc...

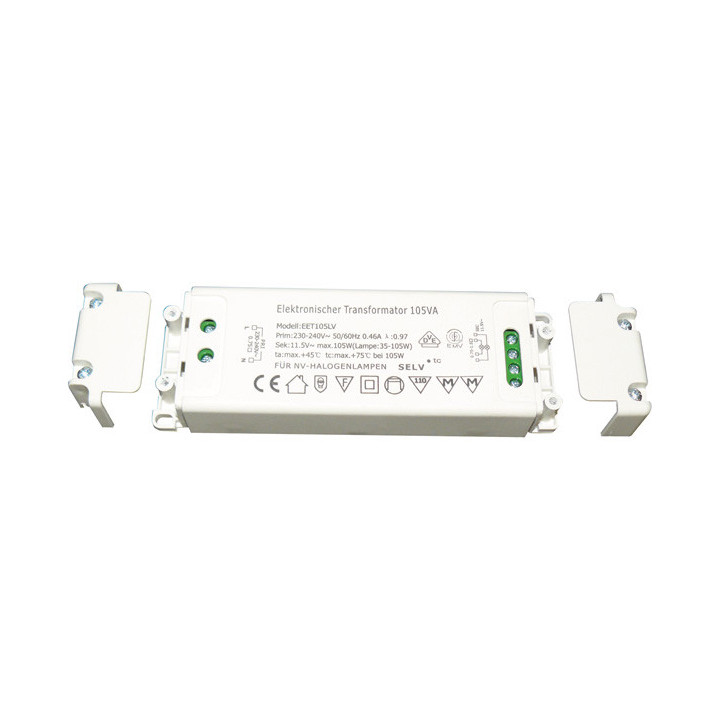

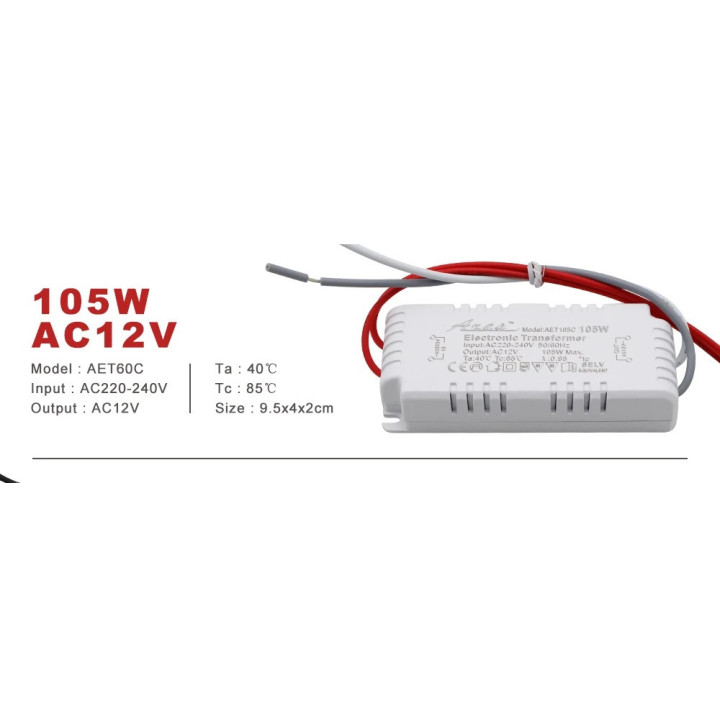

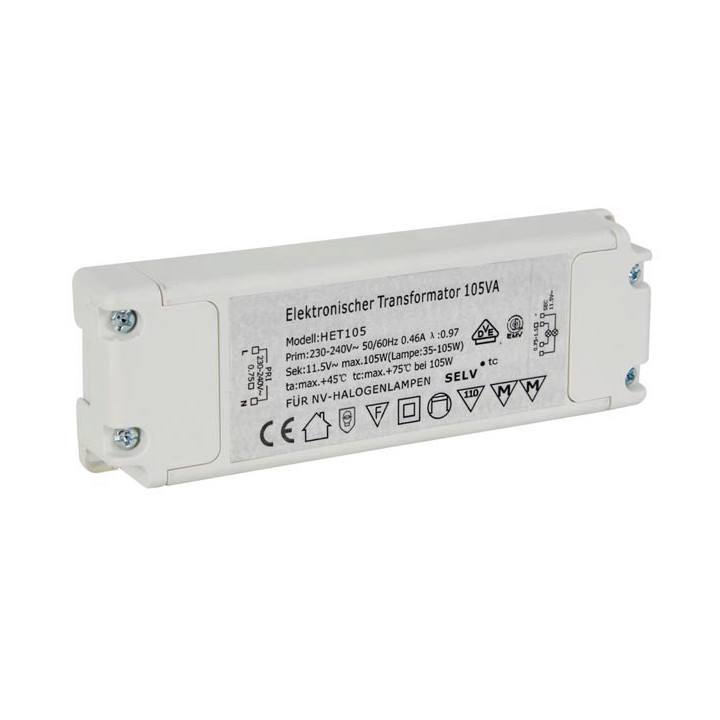

REF : HET105
Emplacement : R8G2
Electronic transformer 60va 80va 90va 105va 105W 220v 230v 12Vac halogen lighting transformer
Electronic transformer for halogen lamp 60va 80va 90va 105va 105W 220v 230v 12V power supply driver
Electronic transformer for halogen lamp 220V-12V Power Supply Transformer
This transformer cannot be used for LED lamps. This transformer can only be used on 12V halogen lamps.
This transformer, cannot be tested by the multimeter, Otherwise we cannot measure the actual data, and the measured data is inaccurate. It should connect the transformer to the 12v crystal lamp bead, ensure the electric light after testing.
The quality of the transformer is reliable, practical, and can support dimming/block/remote control.
Usage time in normal environment: more than two years.
Note: Input line (red line): AC220 output line (gray line and white line): AC12V.
1. The optimized matching circuit design, power, large margin, more stable performance.
2. Compact ultra-thin patent shell, Compact volume, saving installation space.
This electronic transformer, changing from AC 220V-240V to AC 12V, it could protect low voltage bulbs. It is very durable to use and easy to install, red lines are input lines, white and gray lines are output lines. And these transformers are suitable for all low voltage G4/G5.3 12V quartz m (halogen) bulbs, or suitable for matching lighting of MR11/MR16 quartz lamp cup (halogen). Features: These transformers are required in place of the standard 220V-240V to 12V transformers commonly used for quartz/halogen bulbs. Without a transformer, the low voltage halogen lamp may not work or flicker. If a low voltage halogen lamp operates with normal voltage, the halogen lamp will have significantly reduced their lifespan and possibly could break after just a few hours. MR11/MR16 quartz lamp (halogen) matched to the lighting. These transformers are genuine and fully approved with the CE safety mark. With excellent quality and fine workmanship, very sturdy and durable to use. Specifications: Condition: New Shell Material: Plastic Color: White Input Voltage: AC220-240V 50/60Hz Output Voltage: AC 12V Rated Power: 105W Max. Power Factor: 0.99 Maximum Ambient Temperature (Ta): 40℃ Maximum Case Temperature (Tc): 85℃ Lifespan: Greater than 2 years under normal use. Connection mode: the input line (red line) IN: AC220-240V, the output lines (gray lines and white lines) OUT: AC12V Body Size (L x W x H): approx. 9.5 x 4 x 2.1cm / 3.7 x 1.6 x 0.8inch Line Length: Approx. 16cm / 6.3in Package Weight: Approx. 68g Package Included: 1 x Electronic Transformer
Choose and purchase according to the total power of lamps and lanterns, total number of lamp holders (for example, the lamps and lanterns are 5 pieces of 20W or 10 pieces of 10W, then the total power of the lamp beads is 100W, so the minimum power of the transformer should be 105W, If you choose 80W transformer, it will burn. It is better to choose and buy the transformer whose power is 20W more than the total power for lamps and lanterns, so that the life of the transformer and lamp beads can be extended and the lamp bead can be brighter. Note: Too much power will make the lamp bead dim! Therefore, the best is more than 20W!).
Description:
Features:
Maximum power of 105 watts
Mini size, high luminous efficiency
Suitable for: Droplight, low voltage lamp, spotlight, down light and all kinds of lamps with 12V power supply
Applications: Shopping malls, exhibition halls, offices, household, living room, etc.
Quartz lamps for low voltage 12V (halogen)
Mini size, high luminous efficiency
Professional manufacturing and good performance
Input (red line): AC220-240V 50/60HZ 0.41A
Output (white lines): AC12V 105MAX(40-105W)
Ta:40℃ Tc:85℃
Size: Approx.9.5*4.1*2.2cm(L*W*H)
Cable Length: Approx.12cm
