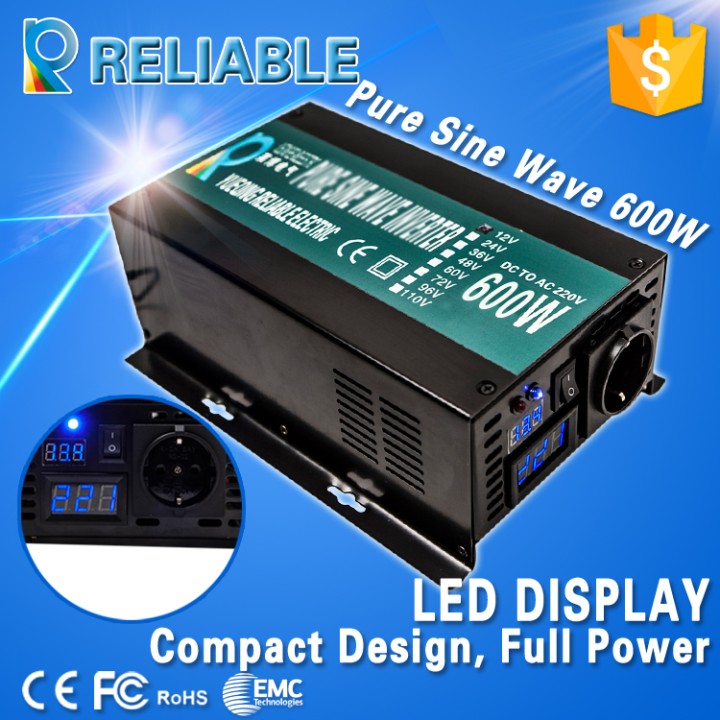

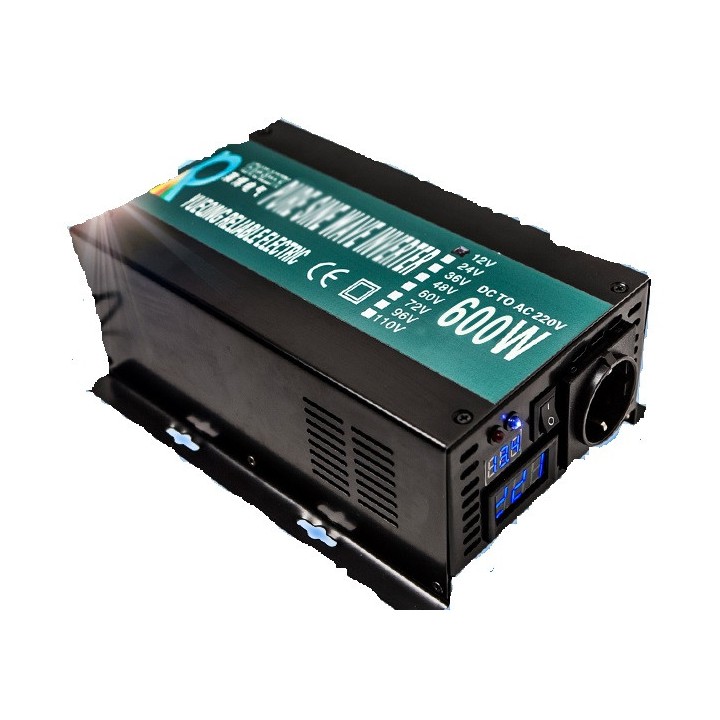

Digital LED Display Off Grid Solar Inverter 600W 12VVDC to 220VAC Pure Sine Wave Power Inverter Home Power Supply

Digital LED Display Off Grid Solar Inverter 600W 12VVDC to 220VAC Pure Sine Wave Power Inverter Home Power Supply
Specifications:

DC Voltage 12V or 24V or 48V
Voltage Range 10-15VDC or 21-30VDC or 42-60VDC
NO Load Current Draw <1.5A
Efficiency >85%
DC Connector Cables With Clips or Car Adaptor
AC Voltage 100/110/120VAC or 220/230/240VAC
Continuous Power 600W
Surge Power 1200W
Waveform Pure Sine Wave
Frequency 50HZ or 60Hz
AC Regulation 3%
Low Voltage Alarm 10DC±0.5V or 20.5DC±1V or 44VDC±1V
Low Voltage Shut Down 9.5DC±0.5V or 19.5DC±1V or 42VDC±1V
Over Load Shut Off Output
Over Voltage Shut Down 15.5V or 30.5V or 61.2V
Over Thermal Shut Off Output Automatically
Fuses Short Circuit
Working Temperature Between -10centi and +50centi
Working Humidity 20%~90%RH non-condensing
Storage Temperature Between -30centi and +70centi
Start Soft Start
Cooling Ways Cooling Fan
Total Harmonic Distortion THD <5%
Machine Size(mm) 275*170*95mm
Packing Size(mm) 355*230*160mm
Net Weight(kgs) 2.4kg
Gross Weight(kgs) 3.5kg
Packing Type Carton Packing
Feartures:

Pure Sine Wave, as good as the grid power
Full Power
Core Technology, German Design
Most Advanced Program in Software
Complete Protection Non Defect Rate,
Better EMC - Electro Magnetic Compatibility,
No Noise for TV or Stereo Sound
SMT- Surface Mounting Technology
All Big Imported Mosfet,Strong Driving Capacity
PCB Thickness :2.00m
LED Display
Compact Design, Less Weight, Full Power,
Single Layer Design, Easy to Repair if any.
Earth Connection for Both Inverter and PCB,
Low No Load Current Draw
Durable quality with 10 years usage,
Alarm and LED Indication Light for error warning,
Sufficient Heat Radiation
More Vent Holes on the plates and the bottom for heat radiation
Popular Metal Black Design
Big Current Connector,
All kinds of socket are available
Strong Wiring Row on AC End,
Best quality ever in the market
Focus on the details:
Intelligent temperature control fans
Adapted the intelligent temperature control fan, only the inverter inside temperature as high as 45 °C, the fan starts to working. The higher temperature, the faster the fan rotates.
100% Ture copper
DC input connectors used the big current terminal, durable for the large input current, 100% true copper 200A durable, better electrical conductivity.

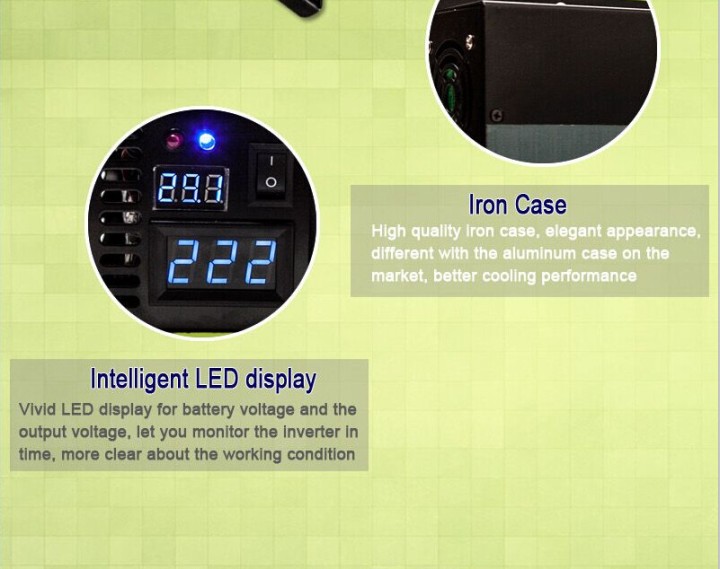

Iron case
High quality Iron case, elegant appearance, different with the aluminum case on the market, better cooling performance.
Intelligent LED display
LED display for battery voltage and the output voltage, let you monitor the inverter in time, more clear about the working condition.
Customized Outlets
types outlets for choice, meet your specific usage.
Reliable pure sine wave inverter advantages:
High quality transformer
As the core components, transfer the DC power to AC power, we use the high frequency transformer, ensure the stable and full AC output, no failure.
Imported capacitor
Adapted the imported capacitor, large electricity, better performance, longer lifetime, safer usage.
True copper inductance
High quality true copper inductance, filter the wave form, ensure the true pure sine wave AC output, safeguard your equipment.

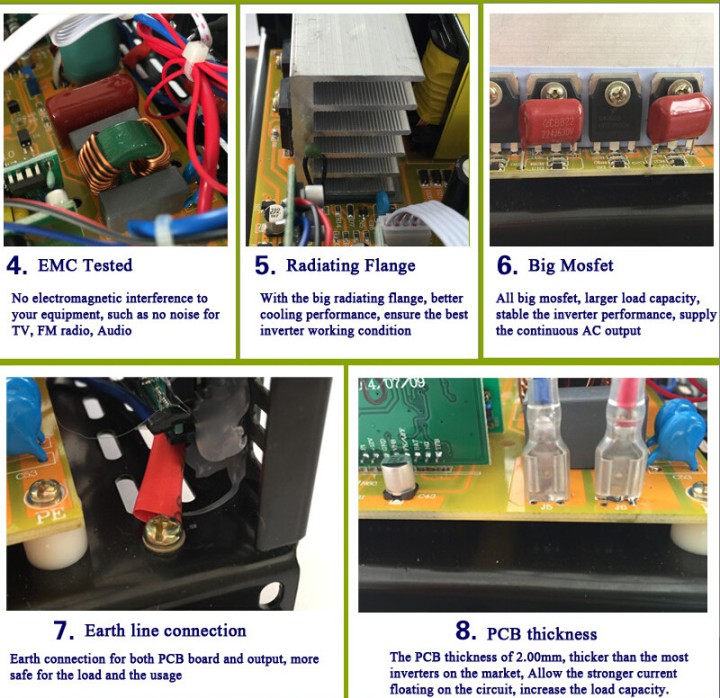

EMC tested
No electromagnetic interference to your equipment, such as no noise for TV, FM radio, Audio.
Radiating flange
With the big radiating flange, better cooling performance, ensure the best inverter working condition.
Big mosfet
All big mosfet, larger load capacity, stable the inverter performance, supply the continuous AC output.
Earth line connection
Earthe connection for both PCB board and output, more safe for the load and the usage.
PCB thickness
The PCB thickness of 2.00mm, thicker than the most inverters on the market, allow the stronger current floating on the circuit, increase the load capacity.

9 kinds of protections:
1.Short circuit production.
When the load is short circuit, the inverter will stop working.
2. High temperature production.
When the use environment is stuffy, the heat of the inverter can not be radiated. The temperature is above the rated temperature, the inverter will stop working.
3. High voltage protections.
The battery voltage is above the rated voltage of the inverter, the inverter will stop working.
4. Low voltage protections
The battery’s voltage falls during the usage. When it is lower than the rated voltage, the inverter will automatically cut the input voltage for the self protection.
5. Surge protection.
It can avoid the DC high voltage’s surging attack upon the electronic components inside.
6. Overload protection
When the appliances’ power is higher than the inverter’s power, the inverter will stop working for self protection.
7. Over current Protection
When the appliances’ current is bigger than the inverter’ current, the protection components on the board will be cut automatically for self protection.
8.Fuse protection.
When the appliance’s resistance is bigger than inverter’s, the fuses on the socket will be automatically cut off for self protection.
9. Reverse protection

It can avoid the accidents of burning the inverter if the positive and the negative poles are reverse connected.

5 kinds of characteristics:
1. The inverter adopts the steel alloy with high rigidity and lower resistance. Plasma oxidizing polishing technique with good heat radition. It’s sturdy and durable and looks nice.
2. The PCB Patch processing with reasonable design and make the AC load stable.
3. The core component adopts the imported and branded components, such as Mosfet ect. And guarantee that the AC output power is stable and sufficient.
4. The wiring terminal adopts the aviation fire proofing material. It can endure the 200A current with high safety.
5. Use the imported extremely mute heat radiator without noise.
