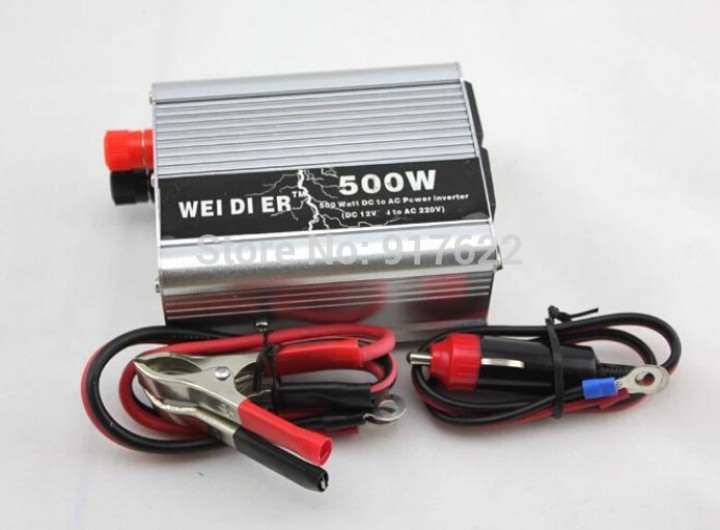

Converter 12v to 230v 500w 220v 240v 1000w peak universal adapter

The voltage converter C50012U provide all appliances on 220V from the cigarette lighter of your car.
Delivered in blister pack with Alligator Clips and cigar lighter plug.

Specifications:

- On / Off Button
- Input voltage: DC11-15V
- Output voltage: AC220V
- Output frequency: 50Hz ± 3Hz
- Curve type: modified sinewave
- Power: 500w
- Yield: 90%
- Polarity: negative (-) ground
- Power failure alarm: 10.6V, setting default: 10V.
- Automatic shutdown Temperature: 65 ° C
- Cooling: ventillateur
- Supplied in blister

- Dimensions: 152 * 95 * 55mm

This converter is protected against overheating, under voltage, over voltage, reverse polarity and overload. It is equipped with a fuse.

ATTENTION!

Be careful not to connect a device consuming more than 500W. If in doubt, contact the manufacturer of the device you wish to operate. Specifications:

• 500 watts of continuous power
• The output voltage of 230 V (50 Hz)

• Input voltage range 10V - 15V DC

• Modified Sine

• Consumption 0.15A rest

• Efficiency 90%

• Protection against short circuit by fuse, overvoltage protection, protection against overheating

• Alarm for low battery voltage to 10.4 V-11V

• Battery low voltage stop at 9.7V-10.3V

• Stop when the battery voltage to 14.5V 15.5V-nod

• Alarm and thermal shutdown at 55? -77?

• Ambient temperature 0? -40?

• Switch on the Power Device / displays - LED and Low battery - LED

• Housing materials aluminum

• Number of active fans: 1

• Number Schuko Sockets: 1

• Dimensions L 152 mm x H 55 mm x W 95 mm

• Weight approximately 0.51 kg

• Certifications:



Scope of delivery:

• DC converter 12 V to 230 V - 500 Watt continuous power

• Connecting cable with cigarette lighter connector

Connection cables to the terminals of the battery
